Brancher
Brancher is a Bernoulli Gate, inspired by Mutable Instruments Branches. It sends incoming gate or clock from the first Trig input to one of two outputs, based on a selected probability. The second Trig input can be used to flip-flop the outputs as on/off gates - one stays high until another trigger flips it.
I/O
| 1/3 | 2/4 | |
|---|---|---|
| TRIG | Signal (clock or gate) for routing | Flip-Flop Clock |
| CV INs | Probability modulation (bipolar) | No effect |
| OUTs | Output A/C | Output B/D |

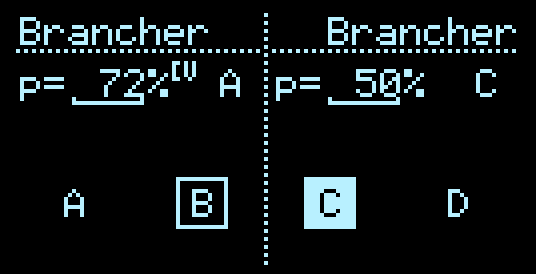

UI Parameters
- Probability
- Press encoder to override probability-selected output and switch to the other one
Credits
Adapted from Brancher © 2018-2022, Jason Justian and Beige Maze Laboratories.
